Visionis FPC-5211-VS One Door Access Control Inswinging Indoor 1200lbs Electromagnetic Lock Kit with Wireless Receiver Remote and Smartphone Controlled WiFi Kit
Bіg Sаlе Visionis FPC-5211-VS One Door Access Control Inswinging Indoor 1200lbs Electromagnetic Lock Kit with Wireless Receiver Remote and Smartphone Controlled WiFi Kit Reviews
So you can check out the other reviews at Amazon.com
only with $ 143.99
- (1) VIS-ML1200LED: 1200lbs Indoor Electric Magnetic Lock with LED Sensor and (1) VIS-ZL1200: L and Z inswing bracket for 1200lbs electromagnetic lock
- (1) VIS-8004: 1-Channel Receiver 315mhz 11-24 VAC/DC (2) VIS-8005: Fixed Code Transmitter, Pre-coded Wireless Remote
- (1) VIS-8003: WIFI Smart Plug Outlet US Standard, (2) VISCP200: 12v 2000ma Power supply
- (1) VIS-7000: Illuminated green 2" square. SPDT switch, 10A@125~250VAC. Stainless-steel single-gang plate. SMARTPHONE NOT INCLUDED
- Product manuals and wiring diagrams are included with this kit. Technical support is available for any questions during installation.
Product Description
Welcome to Visionis
The 5211 kit is a one door 1200lbs Maglock Buzz-in kit for doors that open in. This is for indoor applications. It is mainly used for customers that do not want to physically get up and open the door. With this system, you will be able to let people in by clicking on the wireless RF remote, the VIS-8005. The remote communicates with the wireless receiver, which can program up to 50 remotes, and it has a range of 300 feet.
There are two main features on the receiver that will allow you to program the wireless receiver in two different ways. The default function of the receiver is that when the power is on, the mag lock of your kit is locked and when you press the remote the maglock will unlock temporarily to open the door. The other function that the receiver has is the ON/Off feature. This feature is very similar to a light switch; when you program this option you would press the remote once and the door will unlock and remain unlocked until you press the button again. When you press the remote again, the door will then lock.

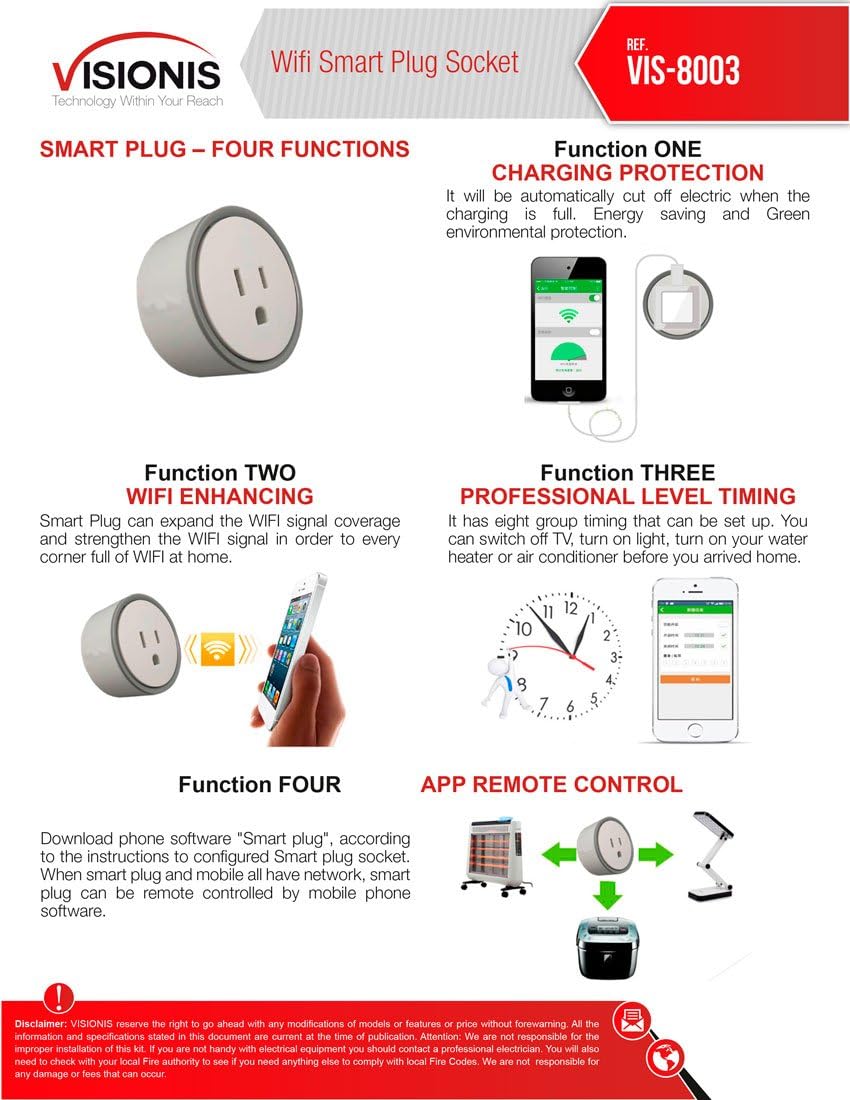

This magnetic lock system also brings an exit button that will allow you to exit from the inside of the door. The added feature within this kit is the VIS-8003 wifi socket. This allows you to do the same functions of the remote on your smart phone. Keep in mind that this exit button does not bring a delay meaning that you would have to press the exit button at the same time that you open the door.
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
We recommend that at the time of install, you set everything up on a work bench to make sure everything is ready to go before. These products and their user-friendly design will have you secured and protected very soon!
Secure Your System
The VISML1200LED magnetic door lock provides a strong sense of security with its outstanding holding force and significant features. The maglock is installed beneath the top of the door frame to make sure that the door remains closed and locked. With the VISML1200LED, you have up to 1200lbs of force protecting the door, which means it would take above 1200lbs of force to open the door if someone wanted to force entry into the door. The LED light on the maglock helps you identify when the maglock is locked and unlocked. When the light is red, the maglock is locked. When the light is green, the maglock is unlocked.
- Voltage Input: 12 VDC / 24 VDC
- Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
- Holding Force: Up to 1200 lbs (545 kg)
- Hall Effect Contact: SPDT rated 2A at 24 VDC
- Magnetic Contact Rating: 28 VDC, 0.2A, 5W
- Anti-Rust Surface Treatment: Blue Zinc Plating
- Operating Temperature: 0~55° C (32~131° F)
- Weight (Magnet): 2.5 kg (±1%)
- Dimensions: Magnet – (L)266x(W)67x(T)39 mm Armature – (L)185x(W)61x(T)16.5 mm
- Green/Red LED Indication for EM Lock Status
Knowing The Details
- Remotely turn appliances and electronic devices on and off
- Set schedules and receive customized notifications
- Compatible with any smartphone or tablet running Android 4.0 and higher or iOS 6 and higher
- Can be used throughout home for multiple devices.
- Current rating 10A
- Voltage rating 90V-245V
- Frequency rating 50HZ-60HZ
- Power rating 2200w
- Temperature rang -10°C ~ 55°C
- Voltage rang 90V-245V AC
- You only need: access to wifi + smart phone, enter the Internet password you can easily get to!
Getting In and Out
The VISIONIS VIS-8004 RF wireless Receiver was built to feed the demand for a device that can meet multiple functions without having to purchase additional devices. The VIS-8004 RF receiver can be used to control all sorts of Electrical devices.
- Operating Frequency: 315mhz
- Number of Codes: 1,048,576
- Data Format: PWM
- Operating Voltage: +12V 24V
- Operating Distance: Up to 320 Feet (100M)
- Operating Temperature: 0-70°C or 32 – 158°F
- Current Draw: 19mA
- Sensitivity: -100DB
- Compatible Transmitter: VIS-8005
- RF channels: One
- No. of Remotes that are able to connect to one Receiver: Up to 20
- Receiver Output: C dry contact (NO/NC/COM)
- Receiver Output Functions: 5 (Default) 4 second momentary, 1-sec momentary, toggle, validity, latch
- Connectors: 5 screw Terminal (NO, COM, NC + -)
- Case Construction: ABS Plastic
- Dimensions: 63mm*45mm*30mm (2.4 Inches* 1.77 Inches*1.18 inches)
- Weight: 43g or 1.52 Ounces
- Antenna: Wire lead
- Mounting Screws: Comes with two mounting screws
The model VIS-8005 is a 1-Channel 315 MHz charcoal and silver remote supplied with a quick-disconnect key ring. This transmitter (remote) is designed for use with the VISIONIS VIS-8004 1 channel receiver. This transmitter (remote) has over 1,048,576 codes of programming which makes it virtually impossible of the codes being duplicated. The receiver programs each specific code; no unauthorized person can gain access to the system by reprogramming or duplicating the Transmitter (remote). This transmitter (remote) can be programmed locally into the memory of the receiver (VIS-8004).
- Voltage: 12/24V
- Frequency: 315 MHz
- Current Draw: 10Ma
- Number of Buttons: 1
- Encoding Type: Fixed
- Operating Distance: Up to 320 Feet (100M)
- Compatible Receiver: VIS-8004
- No. of Remotes that are able to connect to one receiver: Up to 20
- LED Transmission: Blue LED light
- Includes: 2 pieces of the 3v CR2016
- Over 1,048,576 codes
The Visionis 7000 is a standard sized push to exit button. Being one of the most popular exit buttons, it can be used in residential, commerical and industrial areas for all different types of applications. With the illuminated back light and stainless steel plate, it gives the exit button that much more of a presence and professional look. This exit button is for indoor use and does not have a delay.
- Stainless-steel face-plate
- “PUSH TO EXIT” & “PRESIONE PARA SALIR” inserts included
- Fits into standard single-gang box,Large square green color push button.
- 12-inch, AWG 18 wire leads
- Degree of Protection: IP-40
- LED: Yes
- LED Life: 20.000hours
- Switch Material: Plastic
- Switch Plate Material: Stainless Steel
